Highest performance accuracy ratings in downhole navigation
Bluetooth and wireless setup reduces manual handling
Continuous north seeking mode in vertical drill holes
Light weight reduces material lifting and injury risks
Advanced QAQC results immediately after downloading surveys
IMDEXHUB-IQ™ Integration
-Product-Tag-Variant.png)
-
OMNIx38™ hands back two days of bit on bottom time
Case Study
Dimensions
Outer diameter
38mm
Length (inc. battery)
1900mm
Weight (inc. battery*)
8kg
Operational environment
Operational temperature
0° to +70°C (32°F to +158°F)
Depth
6000psi
Shock
500g (inc. bump sub)
Performance
Azimuth**
±0.19° (at 0° latitude)
Dip
±0.25°
Survey time
Continuous Manual Ref.*** (±30° to ±90° dip)
Survey modes
Singleshot & Multishot NS (±30° to ±90° dip)
Continuous NS (±30° to ±90° dip)
Battery
Type
Ni-MH rechargeable batteries
Operating time
15 hours each
Field chargeable
Yes, 2 batteries supplied per kit
Data
Quantity
11 hours continuous survey data
Export
WIFI (IMDEXHUB-IQ)
*Excluding running gear
**Results depend on latitude and inclination. Accuracy quoted at 1σ and -70deg dip, 90s NS
***Using rig alignment device for starting reference

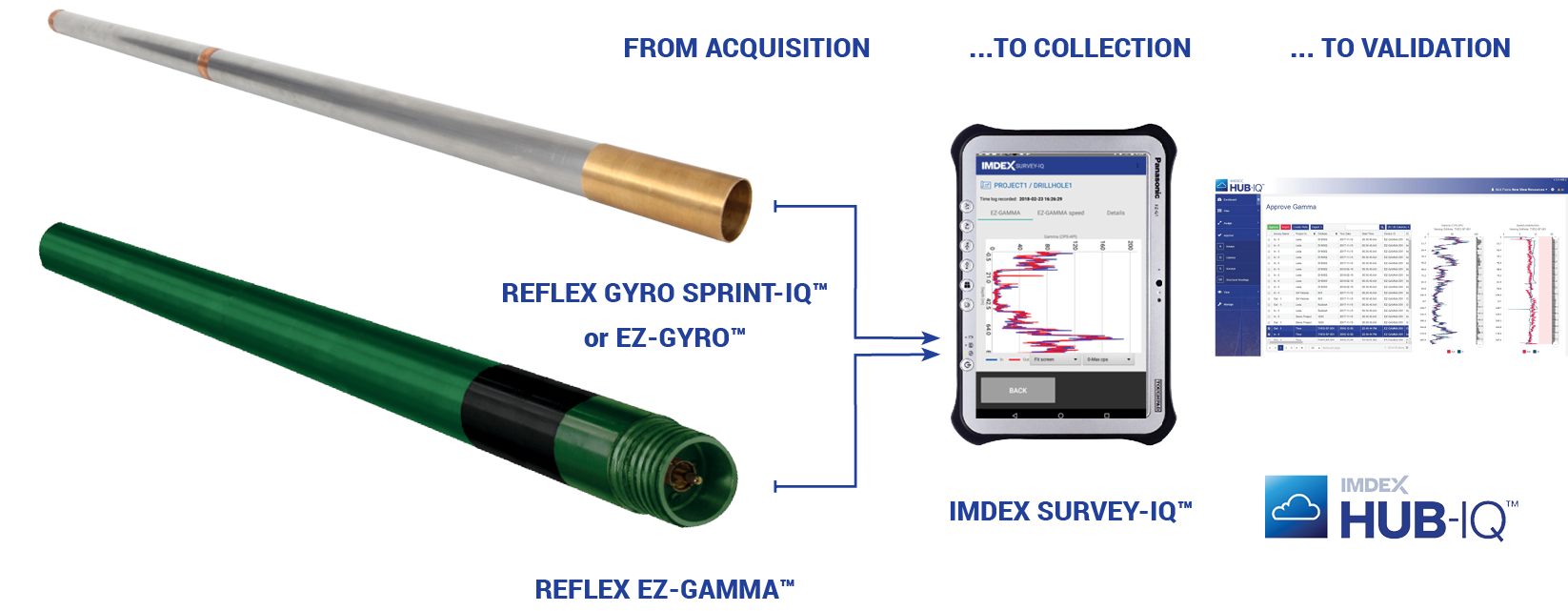

Control multiple IMDEX survey tools through one app.
Less wire, less charges, less equipment
Using one tablet and interface with multiple tools at the same time reduces hardware costs (including tablets, and chargers) while increasing functionality. You can now monitor everything from the one app.
Boost productivity
IMDEX SURVEY-IQ™ has crossed the threshold in saving hours for drilling operations by increasing productivity up to four times compared to using conventional apps.
Multi tool, multi stream, real-time information
IMDEX SURVEY-IQ™ allows efficient and simultaneous quality assured survey and gamma logging that can be completed by one member of the drill crew. Survey results are immediately available for approval via the cloud-based service IMDEXHUB-IQ™. As well as further analysis in ioGAS™ or 3D visualisation software such as Seequent Central
Time stamped drillers run sheet
With paperless run sheets, the driller or supervisor has the ability to work out how many meters per shift, when the drilling happened, and even if there were stops or delays.
Measure depth accurately, quickly and safely.
The REFLEX DEPTH ENCODER™, with its ergonomic design and safety features, reduces the risk of operator injuries while still delivering an easy to assemble user-friendly system.
The unique design maintains its high level of accuracy by reducing the impact of curvature error and making perfect alignment less critical over a wider variety of applications.
The unique design enables the DEPTH ENCODER to work in all standard diamond sizes as well as RC up to 4 ½” and horizontal drilling.
-

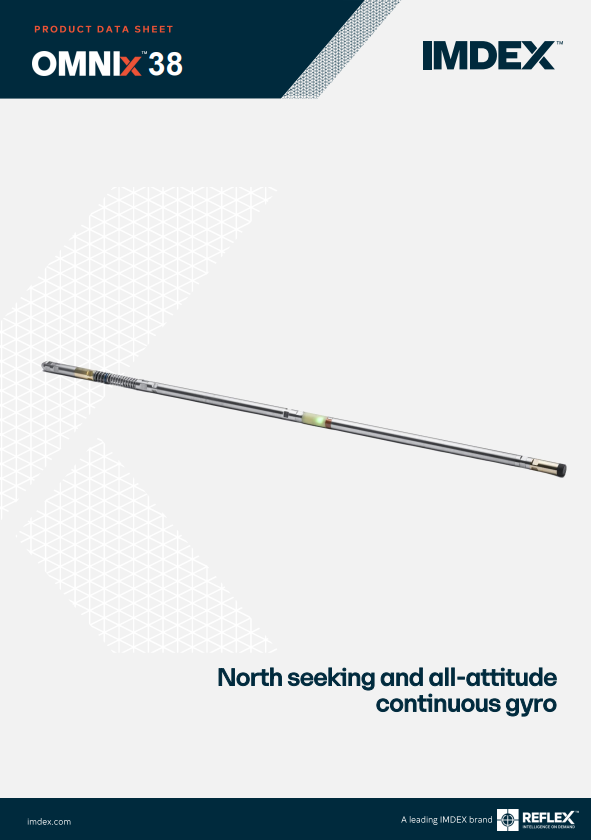

Product Data Sheet
-
