Rugged and reliable. Operates in temperatures of up to 80°C
Built with no moving parts
Long Downhole Instrument battery life (12 months)
Core Sizes: N, N2, N3, H, H3, P, LTK60, B, BTK®, W/L56, W/L66, W/L76, BTW, NTW
Long control unit battery life (2 years)
Downhole instrument housing pressure: Up to 10, 000psi
Technical specifications
Core Sizes
N, N2, N3, H, H3, P, LTK60, B, BTK®, W/L56, W/L66, W/L76, BTW, NTW
Dimensions
ACT III
Length
300 – 400mm
Control unit
Outer diameter
42mm
Length
300mm
Weight
30kg (Average weight per kit)
Accuracy
Range
0º to ±88º dip
Accuracy
0º to ±88º dip
Depth rating
Downhole instrument housing pressure
Up to 10, 000psi
Rating
Temperature
Downhole instrument - Operating
-30ºC to +60ºC (-22ºF to 176ºF)
Control unit - Operating
-30ºC to +50ºC (-22ºF to 122ºF)
Depth
Downhole instrument housing pressure
Up to 10, 000psi
Battery
Battery type
Non-rechargeable lithium battery pack
Downhole Instrument
Battery life - Infrequent use
Up to 2 years (approx.)
Battery life - Normal use
Up to 12 months (approx.)
Control unit
Battery life - Infrequent use
>2 years (approx.)
Battery life - Normal use
>2 years (approx.)
Control multiple survey tools such as the REFLEX EZ-GAMMA™, REFLEX GYRO SPRINT-IQ™ and REFLEX EZ-GYRO™ through one app.
Less wire, less charges, less equipment
Using one tablet and interface with multiple tools at the same time reduces hardware costs (including tablets, and chargers) while increasing functionality. You can now monitor everything from the one app.
Boost productivity
IMDEX SURVEY-IQ™ has crossed the threshold in saving hours for drilling operations by increasing productivity up to four times compared to using conventional apps.
Multi tool, multi stream, real-time information
IMDEX SURVEY-IQ™ allows efficient and simultaneous quality assured survey and gamma logging that can be completed by one member of the drill crew. Survey results are immediately available for approval via the cloud-based service IMDEXHUB-IQ™. As well as further analysis in ioGAS™ or 3D visualisation software such as Seequent Central
Time stamped drillers run sheet
With paperless run sheets, the driller or supervisor has the ability to work out how many meters per shift, when the drilling happened, and even if there were stops or delays.
-

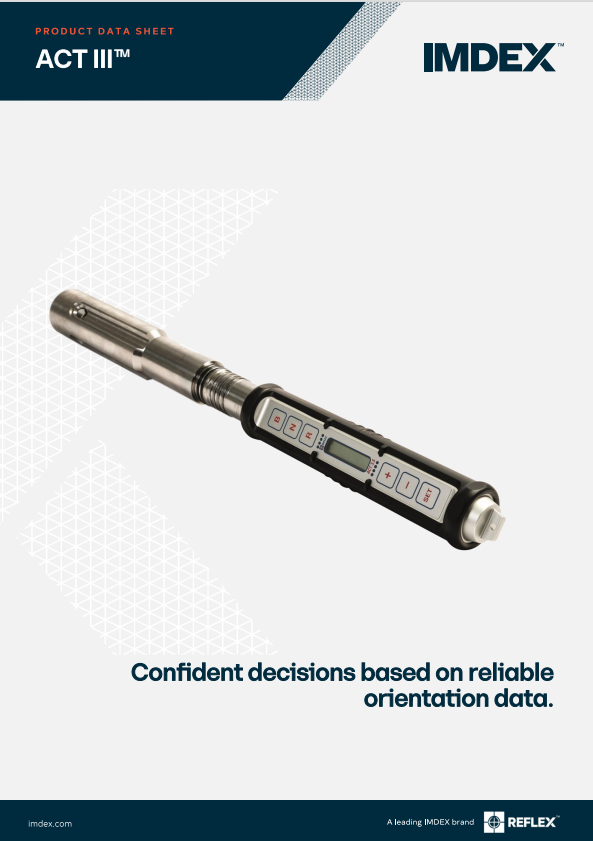

Product Data Sheet
Product support, anywhere, anytime
We’re committed to offering the highest level of support to our customers, which is why we have launched our Customer Care Portal, so you can receive support on our products and solutions, wherever you are in the world.
- Raise product support requests anytime (24/7)
- Access our comprehensive knowledge base
- Track and manage your support requests
Frequently asked questions
What is core orientation?
What holes sizes is the ACTIII compatible with?
The ACTIII can be used to orient core in hole sizes N, N2, N3, H, H3, P, LTK60, B, BTK®, W/L56, W/L66, W/L76, BTW, NTW
