  1. Drilling Optimisation
  2. Solids Removal Units
  3. 1500 R

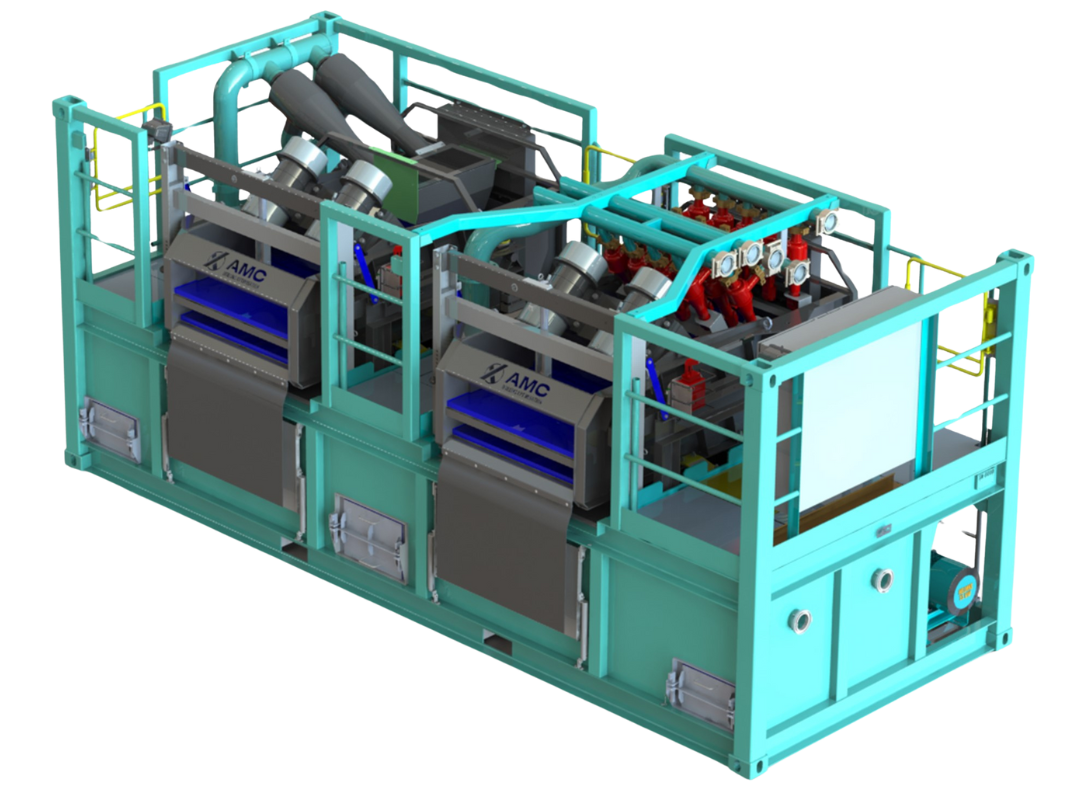

1500 R

  • Significantly reduces water consumption and mud costs

  • Enhances efficiency of drilling fluids, lowering consumption and costs

  • Complete screen selection to deal with all types of ground information

  • Reduces site footprint and environmental management costs

  • Improves overall drilling performance

Drilling fluids are pumped from the collar of the drill hole to the recycling unit. The fluid is then run through a screen that is attached to the shaker basket.

This screen will remove the coarser cuttings. The finer cuttings and fluid are then passed through the desander and desilter cones, which will remove solids down to a particle size of ~50 micron. Solids that are removed from the unit are dry, and are able to be directly off loaded into a bin and disposed of when required.
  • 1500 R
    Weight & dimensions

    Length

    6,058mm (19.9ft)


    Width

    2,434mm (8ft)


    Height

    2,590mm (8.5ft)


    Weight

    8,740kg (19,268lbs)


    Tank volume

    8m³ (106ft3)

    Technical specification

    Shaker (Desilter)

    MD-823-DD (Double deck)


    Shaker (Desander)

    MD-823-DD (Double deck)


    Desilter

    14 x 4” Cones


    Desander

    2 x 10” Cones


    Generator requirements

    150kVA



    Transfer Pump

    76mm x 51mm 330mm


    Desilter Pump

    127mm x 102mm x 356mm


    Desander Pump

    127mm x 102mm x 356mm


    Transfer Motor

    15kW


    Desilter motor

    37kW


    Desander motor

    37kW
