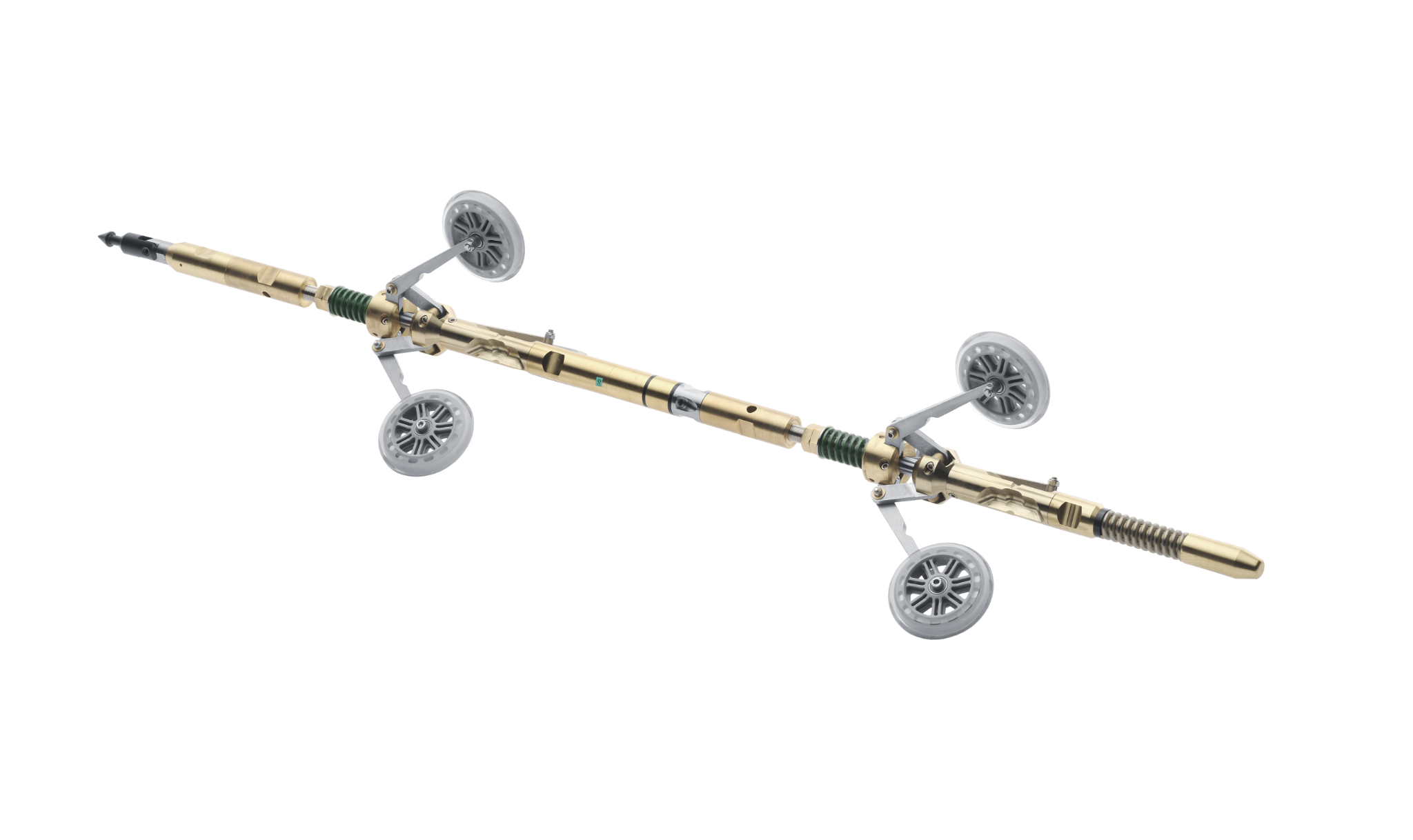

Adjustable between the range of 100 and 400mm/4’’ to 15’’
Two wheel sizes and auto-rotate functionality
Intuitive operating software
-Product-Tag-Variant.png)
Dimensions (centralisers only)
Length
5300mm / 20.86 in per unit
Weight
5.7kg/12.56lbs per unit
Centraliser range
40mm / 1.6in
DeviGyro sensor
Length
140mm / 5.5in
Diameter
25mm / 1in
Weight
0.2kg / 0.4lbs
Specifications
Pressure (bar/psi)
300bar / 4350psi
Temperature range
-20°C - 60°C / -4°F - 140°F
Compatible sizes
BWL, NWL, HWL & PWL
Centraliser range
45-100mm / 1.8-3.9in ID
Azimuth accuracy
±0.1°/100m
Typical positional accuracy
0.2%
Inclination accuracy
±0.1°*
Tool face accuracy
±0.2°*
Azimuth range
0°-360°
Inclination range
-90° - +90°
Temperature
Recorded
Survey mode
Continuous or multishot
Survey speed
Up to 100m/min
Affected by magnetics
No
Memory
6h 40min
Data communication
Wireless
Battery
Battery type
1x CR 123a
Battery capacity, continuous use
24 hours
Handheld device
Device
Type
Android Smartphone
Software
DeviGyro App
Battery
Battery capacity, continuous use
15 hours
Battery type
Lithium
IP rating
IP68
-

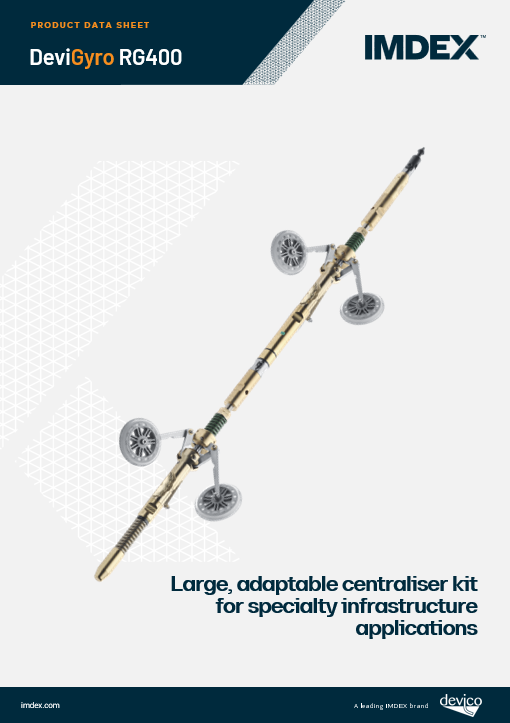

Product Data Sheet
Product support, anywhere, anytime
We’re committed to offering the highest level of support to our customers, which is why we have launched our Customer Care Portal, so you can receive support on our products and solutions, wherever you are in the world.
- Raise product support requests anytime (24/7)
- Access our comprehensive knowledge base
- Track and manage your support requests
Frequently asked questions
How long is the DeviGyro RG40 when fully assembled?
- Compact (without extension bars):1.5m
- Extended (with extension bars): 2.2m.
Is the DeviGyro RG40 compatible with V-Wall rods?
Yes, it is compatible with standard, V-Wall and W-Wall coring rods.
What running gear is provided with a DeviGyro RG40 kit?
A DeviGyro RG40 Kit includes a DeviGyro Instrument Kit (Instrument and Android phone), an RG40 Running Gear kit (pressure barrel, centralizers, bull nose, swivel and spear head/wire adapter and 3 v-stands) and a DeviCounter Kit (DeviCounter, Clamp and Android phone).
Is the DeviGyro RG40 North Seeking?
No, the DeviGyro is not north seeking. It is a high precision, continuous rate gyro using north seeking principles and proprietary algorithms to determine the drill hole path from a known direction. Most continuous north seeking gyros operate in the same way. They determine a start direction and then measure the “rate“ of change from the initial reference.
