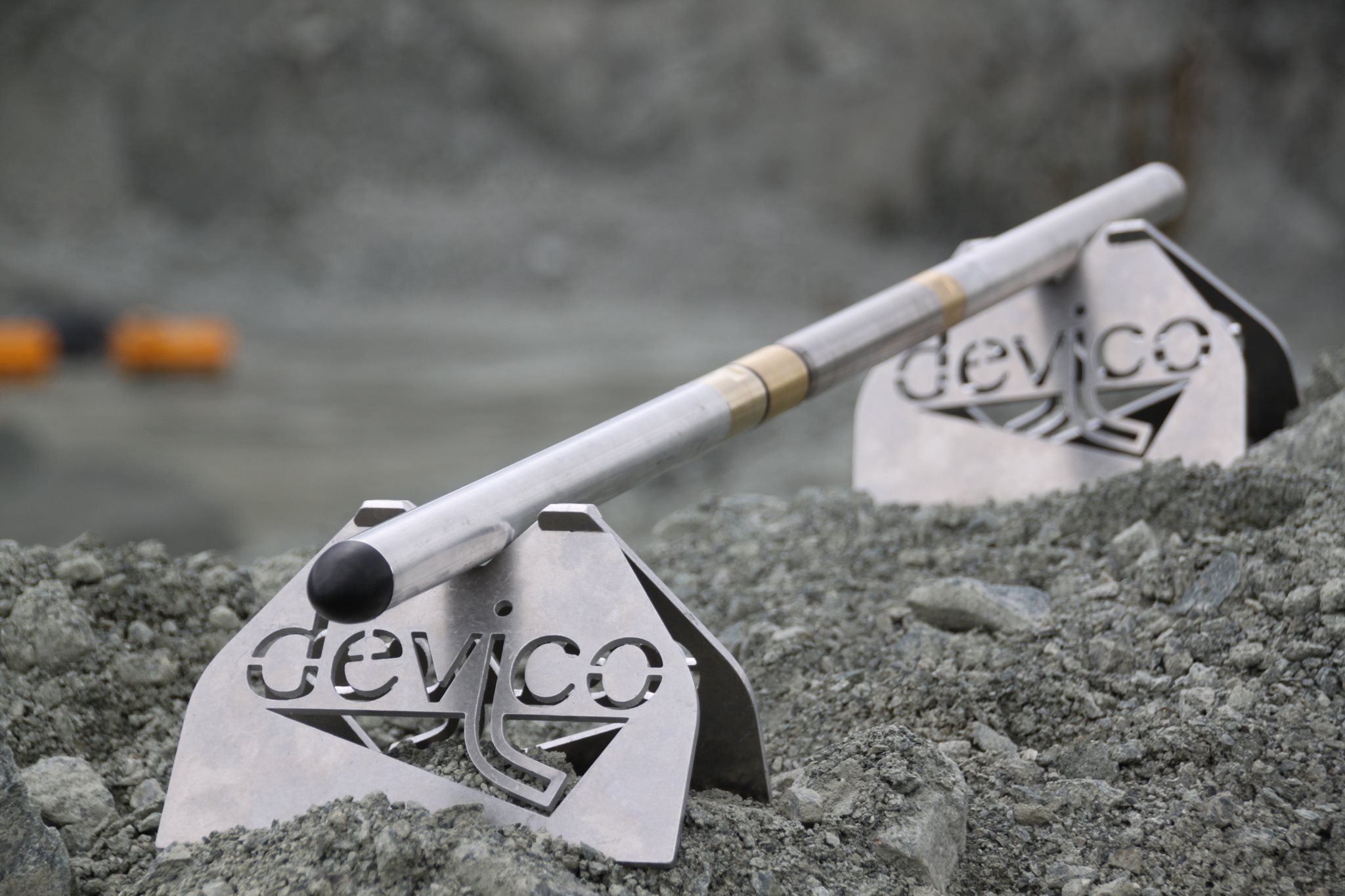

DeviGyro™ RG30 SLIMLINE

Up to 100m/min continuous survey speed

Robust titanium running gear

Precise repeatability at all angles

    Dimensions
    Running gear

    Length

    1400mm / 55.1in


    Diameter

    30mm / 1.2in


    Weight

    2.5kg / 5.5lbs

    DeviGyro sensor

    Length

    140mm / 5.5in


    Diameter

    25mm / 1in


    Weight

    0.2kg / 0.4lbs

    Specifications

    Pressure (bar/psi)

    300bar / 4350psi


    Temperature range

    -20°C - 60°C / -4°F - 140°F


    Azimuth accuracy

    ±0.1°/100m


    Typical positional accuracy

    0.2%


    Inclination accuracy

    ±0.1°*


    Tool face accuracy

    ±0.2°*


    Azimuth range

    0°-360°

    Inclination range

    -90° - +90°


    Temperature

    Recorded


    Survey mode

    Continuous or multi-shot


    Survey speed

    Up to 100m/min


    Affected by magnetics

    No


    Memory

    6h 40min


    Data communication

    Wireless

    Battery

    Battery type

    1x CR 123a

    Battery capacity, continuous use

    24 hours

    Handheld device
    Device

    Type

    Android Smartphone


    Software

    DeviGyro App

    Battery

    Battery capacity, continuous use

    15 hours


    Battery type

    Lithium


    IP rating

    IP68

    *Calibrated for temperature range -10°C to 60°C

    Product support, anywhere, anytime

    We’re committed to offering the highest level of support to our customers, which is why we have launched our Customer Care Portal, so you can receive support on our products and solutions, wherever you are in the world.

    • Raise product support requests anytime (24/7)
    • Access our comprehensive knowledge base
    • Track and manage your support requests


    Frequently asked questions

    What running gear is provided with a DeviGyro RG30 Slimline kit?

    A DeviGyro RG30 Slimline Kit includes a DeviGyro Instrument Kit (Instrument and Android phone), an RG30 Running Gear kit (pressure barrel, bull nose, top sub and 2 v-stands) and a DeviCounter Kit (DeviCounter, Clamp and Android phone).

    Can we survey vertical drill holes with the RG30 Slimline?

    Yes, the advanced DeviGyro technology precisely detects and quantifies any deviation the instrument is subjected to as it traverses the drill hole. Providing highly accurate, repeatable data at any angle, including vertical.

    What are the key differences between DeviGyro RG30 Slimline and DeviGyro RG30 Helix?

    The RG30 Slimline is not designed for use with wireline, it is commonly used in combination with a DeviRodder for surveying in short, open hole environments such as drill and blast, where up-holes and horizontal holes are common. Hence it is built using lightweight materials and has a short body.

    Though the RG30 Helix is specifically designed for in-rod, downhole wireline surveying. Hence it has been built with heavier materials and a longer body, containing a top sub, swivel, bullnose, and centralisers.
