Up to 100m/min continuous survey speed
Slim diameter capability with automatically adapting centralisers
Dual survey method functionality (rotating and non-rotating)
-
DeviAligner™
Product-Product-Tag-Variant.png)
-
IMDEXHUB-IQ
Product
Dimensions
Running gear
Length
1400mm / 55.1in
Diameter
30mm / 1.2in
Weight
5.9kg / 13lbs
DeviGyro sensor
Length
140mm / 5.5in
Diameter
25mm / 1in
Weight
0.2kg / 0.4lbs
Specifications
Pressure (bar/psi)
300bar / 4350psi
Temperature range
-20°C - 60°C / -4°F - 140°F
Compatible sizes
AWL, BWL
Centraliser range
30-50mm / 1.2-2in ID
Azimuth accuracy
±0.1°/100m
Typical positional accuracy
0.2%
Inclination accuracy
±0.1°*
Tool face accuracy
±0.2°*
Azimuth range
0°-360°
Inclination range
-90° - +90°
Temperature
Recorded
Survey mode
Continuous or multi-shot
Survey speed
Up to 100m/min
Affected by magnetics
No
Memory
6h 40min
Data communication
Wireless
Battery
Battery type
1x CR 123a
Battery capacity, continuous use
24 hours
Handheld device
Device
Type
Android Smartphone
Software
DeviGyro App
Battery
Battery capacity, continuous use
15 hours
Battery type
Lithium
IP rating
IP68
*Calibrated for temperature range -10°C to 60°C
-

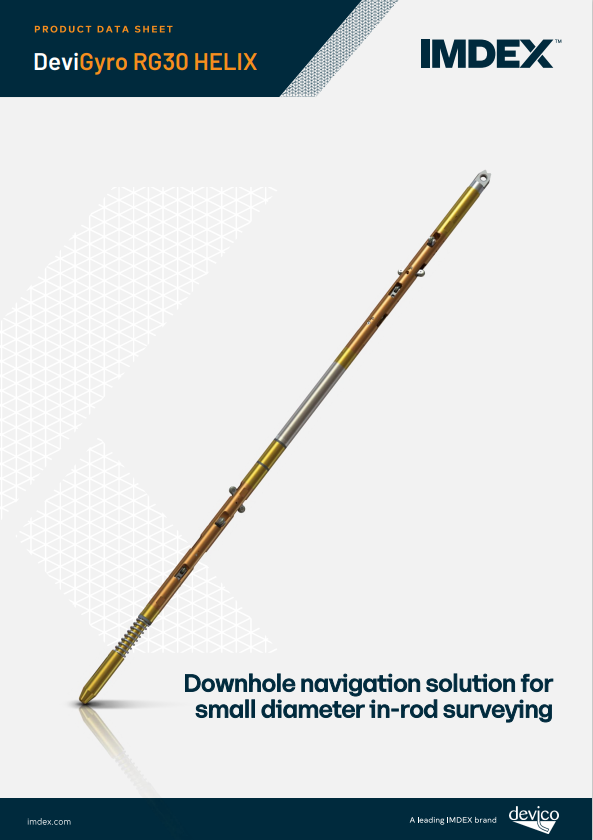

Product Data Sheet
Product support, anywhere, anytime
We’re committed to offering the highest level of support to our customers, which is why we have launched our Customer Care Portal, so you can receive support on our products and solutions, wherever you are in the world.
- Raise product support requests anytime (24/7)
- Access our comprehensive knowledge base
- Track and manage your support requests
Frequently asked questions
What is provided in the DeviGyro RG30 Helix running gear kit?

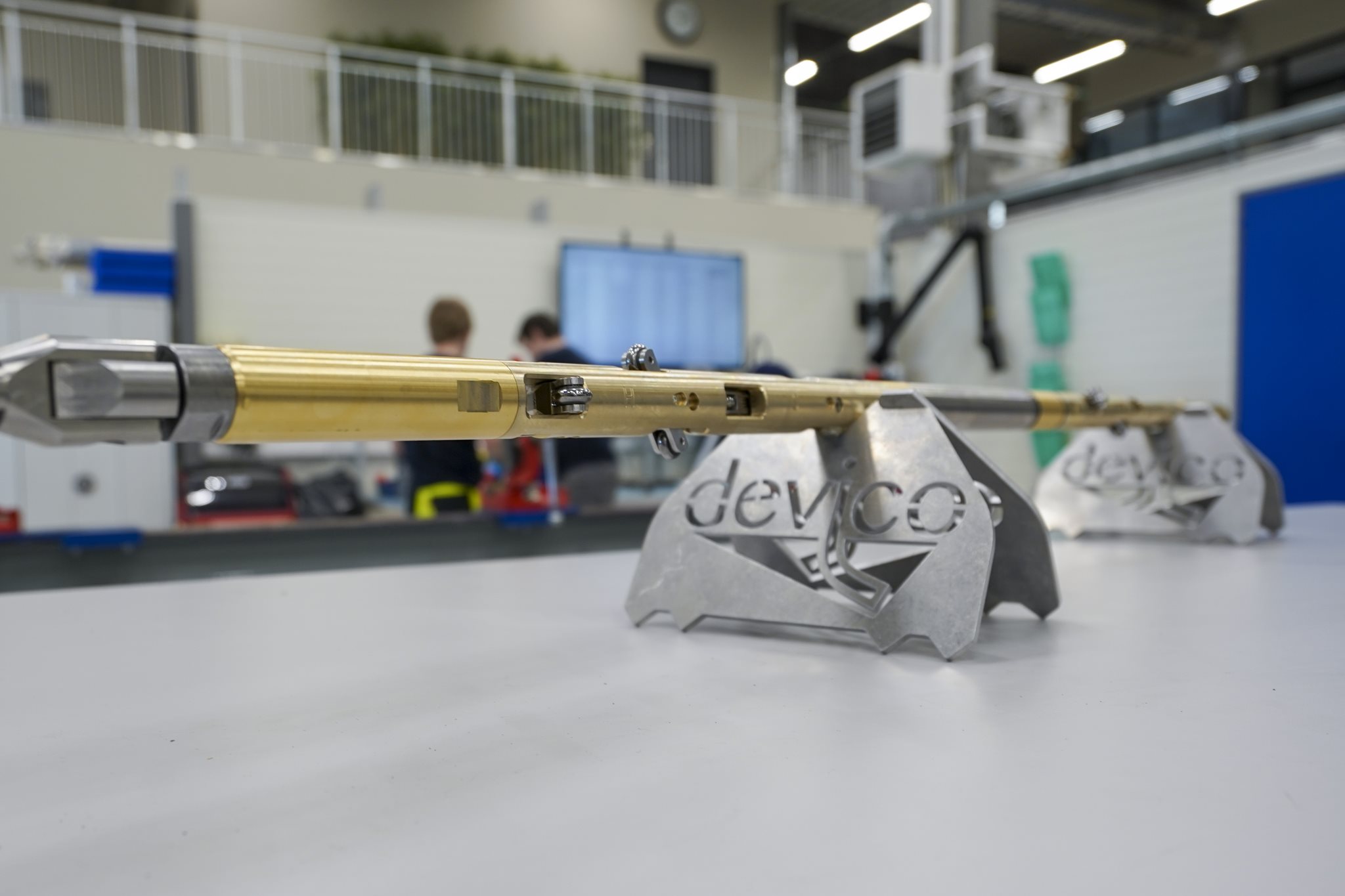

The DeviGyro RG30 Helix running gear kit includes a pressure barrel, bull nose, top sub swivel, two RG30 Helix centralisers, four extension/sinker bars and two v-stands.
What is the purpose of dual functionality centralisers?
The helix survey method provides optimal accuracy in most situations, however in some situations, non-rotating centralisers may be preferred, for instance in vertical holes.
Is the DeviGyro RG30 Helix suitable for A-size diamond core drilling?
Yes, the DeviGyro RG30 Helix will work in an A-size wireline drill string (35-37 mm).
What are the key differences between DeviGyro RG30 Slimline and DeviGyro RG30 Helix?
The RG30 Slimline is not designed for use with wireline, it is commonly used in combination with a DeviRodder for surveying in short, open hole environments such as drill and blast, where up-holes and horizontal holes are common. Hence it is built using lightweight materials and has a short body.
The RG30 Helix is specifically designed for in-rod, downhole wireline surveying. Hence it has been built with heavier materials and a longer body, containing a top sub, swivel, bullnose, and centralisers.
What length is the RG30 Helix assembly?
- Approximately 1.3m when assembled without any of the 4 extension/sinker bars provided in the kit
- 1.9m when assembled with 2 extension/sinker bars
- 2.5m when assembled with all 4 extension/sinker bars.
